Scott Voltage FR 710

Scott Voltage FR 710
This item is currently not available.

Details

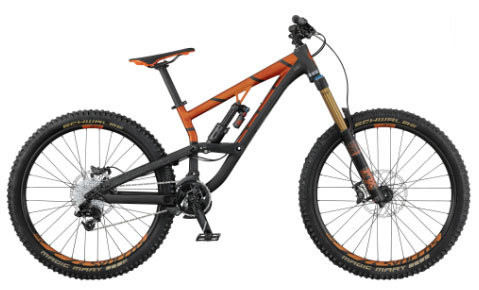

The SCOTT Voltage FR 710 is your one stop shop for bikeparks, downhill tracks, and any trail that deserves a good ol' roostin’. The bike has been designed around a 27.5” wheel standard, but can be converted to run 26” wheels so that no matter the terrain or style you are riding, you have the right tool for the job. Thanks to a low BB, a slack head angle, short chain stays and a low leverage ratio, this bike will surely put a grin on your face.

Specs

Frame Voltage FR Alloy 6061 Hydroformed tubing ISCG & ISCG05 tabs / headtube for 1.5" Dropout with 135x12mm thru axle 190mm travel
Fork FOX 36 Air 27.5 180mm travel / Air / RC2
Headset Syncros FR adjustable Semi integrated / adj +-1° or +-2° with cup ID 49.6mm / OD 55mm
Rear Shock FOX X2 Performance Elite Low speed compression 241x76mm
Rims/Wheels Syncros MD27 27.5 Disc / 32H
Hubs (Front) Formula DHL-92 / 110x20mm / thru axle (Rear) Formula DCL-360 135x12mm thru axle / sealed bearings
Spokes DT Swiss Champion / 2.0 black
Tires Schwalbe Downhill Evolution Line Front: Magic Mary 27.5x2.35 VertStar Rear: Magic Mary 27.5x2.35 TrailStar Triple Nano Compound / Supergravity
Crankset Truvativ Descendant 36T chainring / 170mm
Bottom Bracket Truvativ BB GXP / Shell 73mm
Chain KMC X10
Front Derailleur E.thirteen LG-1+ ISCG05 / w/Taco alloy backplate
Rear Derailleur Sram X9 / short cage / 10 Speed
Rear Cogs Sram PG-1050 / 11-36T
Shifters Sram X7 / Trigger Shifter
Handlebars Syncros DH1.5 35mm / 780mm / 20mm Rise Syncros Pro DH dual lock-on grips
Stem Syncros XM1.5 35mm / 50mm / 0°
Brake Levers Shimano XT BL-M8000
Brakes Shimano XT BR-M8000 Disc 203mm / SM-RT66L Rotor
Pedals Wellgo B155U SCT / flat / w/replaceable pins
Saddle Syncros XM2.0 / CrMo Rails
Seat Post Syncros FR2.0 / 31.6mm / zero offset
Weight 34.83 lbs

* Subject to change without notice.

Part Numbers

Option MPN
Small 249574006
